.NET实现断点续传(上传/下载)
Jocoboy
  2025-03-25 17:28:11   2025-06-19 16:56:28    277k Words  16:49 Mins

基于.NET实现大文件的断点续传功能，包含上传与下载。其中上传部分包括分片上传与断点续传功能，并借助WinForm实现上传进度反馈、并行上传、分片大小动态调整等辅助功能。

前言

断点续传基于分片上传和分片下载，包含断点续传上传与断点续传下载两部分，下面基于.NET分别对其进行功能实现。

断点续传上传

在文件上传场景中，分片上传和断点续传是处理大文件上传的重要技术。

除了基本的断点续传功能，大文件上传还应提供以下辅助功能：

  • 分片大小调整：根据网络状况动态调整分片大小
  • 并行上传：可以并行上传多个分片以提高速度
  • 完整性校验：合并文件后校验哈希值确保文件完整
  • 清理机制：定期清理未完成上传的临时分片
  • 进度反馈：提供上传进度信息给用户

下面我们来简单实现上述功能。

分片上传

分片上传流程如下：

  • 客户端首次上传前生成文件唯一ID(通常使用文件内容哈希，此处为了演示重新上传是从0开始的，使用的是Guid)
  • 客户端将文件分割为固定大小的块，每块单独上传到服务器
  • 服务器接收并临时保存每个分片
  • 当所有分片上传完成后，服务器合并分片为完整文件

服务端实现

UploadChunk接口实现了分片的临时存储(存储的临时文件名为fileId_chunkNumber)，以及分片的最终合并。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
[HttpPost]
[AllowAnonymous]
public async Task<IActionResult> UploadChunkAsync(CancellationToken cancellationToken)
{
    var form = await Request.ReadFormAsync(cancellationToken);
    var fileId = form["fileId"].ToString();
    var chunkNumber = int.Parse(form["chunkNumber"].ToString());
    var totalChunks = int.Parse(form["totalChunks"].ToString());
    var fileName = form["fileName"].ToString();
    var chunk = form.Files["chunk"];

    // 确保上传目录存在
    Directory.CreateDirectory(_uploadPath);

    // 临时保存分片
    var chunkPath = Path.Combine(_uploadPath, $"{fileId}_{chunkNumber}");
    using (var stream = new FileStream(chunkPath, FileMode.Create))
    {
        await chunk.CopyToAsync(stream, cancellationToken);
    }

    // 如果是最后一个分片，合并文件
    if (chunkNumber == totalChunks - 1)
    {
        await MergeChunksAsync(fileId, totalChunks, fileName, cancellationToken);
        return Ok(new { Message = "Upload complete", FileName = fileName });
    }

    return Ok(new { Message = "Chunk uploaded", ChunkNumber = chunkNumber });
}

private async Task MergeChunksAsync(string fileId, int totalChunks, string fileName, CancellationToken cancellationToken)
{
    var finalPath = Path.Combine(_uploadPath, fileName);

    using (var finalStream = new FileStream(finalPath, FileMode.Create))
    {
        for (int i = 0; i < totalChunks; i++)
        {
            var chunkPath = Path.Combine(_uploadPath, $"{fileId}_{i}");
            using (var chunkStream = System.IO.File.OpenRead(chunkPath))
            {
                await chunkStream.CopyToAsync(finalStream, cancellationToken);
            }
            System.IO.File.Delete(chunkPath); // 合并后删除分片
        }
    }
}

客户端实现

首先创建一个ChunkedUploadService类，用来处理本地的文件流，并调用服务端的分片上传接口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
public class ChunkedUploadService
{
    private readonly HttpClient _httpClient;
    private readonly string _serviceUri;
    private const string UploadChunkApiUri = "/api/Upload/UploadChunk";
    private const int ChunkSize = 1024 * 1024; // 1MB 每块

    public ChunkedUploadService(string serviceUri)
    {
        _serviceUri = serviceUri;
        _httpClient = new HttpClient();
    }

    public async Task UploadInChunksAsync(string filePath, CancellationToken cancellationToken)
    {
        var fileInfo = new FileInfo(filePath);
        var totalChunks = (int)Math.Ceiling((double)fileInfo.Length / ChunkSize);
        var fileId = Guid.NewGuid().ToString(); // 唯一文件标识

        using var fileStream = File.OpenRead(filePath);

        for (int chunkNumber = 0; chunkNumber < totalChunks; chunkNumber++)
        {
            var chunkData = new byte[ChunkSize];
            var bytesRead = await fileStream.ReadAsync(chunkData, 0, ChunkSize, cancellationToken);

            if (bytesRead == 0) break;

            var actualChunkData = new byte[bytesRead]; // 只取实际读取的字节
            Array.Copy(chunkData, actualChunkData, bytesRead);

            await UploadChunkAsync(fileId, chunkNumber, totalChunks, fileInfo.Name, actualChunkData, cancellationToken);
        }
    }

    private async Task UploadChunkAsync(string fileId, int chunkNumber, int totalChunks, string fileName, byte[] chunkData, CancellationToken cancellationToken)
    {
        using var content = new MultipartFormDataContent
        {
            { new StringContent(fileId), "fileId" },
            { new StringContent(chunkNumber.ToString()), "chunkNumber" },
            { new StringContent(totalChunks.ToString()), "totalChunks" },
            { new StringContent(fileName), "fileName" },
            { new ByteArrayContent(chunkData), "chunk", "chunk.dat" }
        };

        var response = await _httpClient.PostAsync($"{_serviceUri}{UploadChunkApiUri}", content, cancellationToken);
        response.EnsureSuccessStatusCode();
    }
}

然后在客户端的UI线程中使用异步方式调用ChunkedUploadService类中的分片上传方法。

1
2
3
4
var serviceUri = "http://localhost:5001";
var filePath = $"{disk}:\\{srcDir}\\{srcFile}";
var uploader = new ChunkedUploadService(serviceUri);
await uploader.UploadInChunksAsync(filePath, CancellationToken.None);

断点续传

断点续传流程如下：

  • 客户端首次上传前生成文件唯一ID
  • 上传前根据文件文件唯一ID查询服务器已接收的分片，继续上传时只上传缺失的分片
  • 当所有分片上传完成后合并分片

服务端实现

GetUploadStatus接口根据文件标识fileId查询已上传的分片编号，UploadChunk接口的功能同上。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
[ApiController]
[Route("[controller]/[action]")]
[Authorize]
public class UploadController: ControllerBase
{
    private readonly IWebHostEnvironment _env;
    private readonly string _uploadPath;

    public UploadController(IWebHostEnvironment env)
    {
        _env = env;
        _uploadPath = Path.Combine(_env.WebRootPath, "uploads");
    }

    [HttpGet]
    [AllowAnonymous]
    public IActionResult GetUploadStatus(string fileId)
    {
        var uploadedChunks = new List<int>();

        if (Directory.Exists(_uploadPath))
        {
            var chunkFiles = Directory.GetFiles(_uploadPath, $"{fileId}_*");
            foreach (var chunkFile in chunkFiles)
            {
                if (int.TryParse(Path.GetFileName(chunkFile).Split('_').Last(), out var chunkNumber))
                {
                    uploadedChunks.Add(chunkNumber);
                }
            }
        }

        return Ok(uploadedChunks);
    }

    [HttpPost]
    [AllowAnonymous]
    public async Task<IActionResult> UploadChunkAsync(CancellationToken cancellationToken)
    {
        // 同分片上传
    }

    private async Task MergeChunksAsync(string fileId, int totalChunks, string fileName, CancellationToken cancellationToken)
    {
        // 同分片上传
    }
}

客户端实现

首先创建一个ResumableUploadService类，调用服务端的文件分片上传状态接口，对于已上传的分片跳过处理，然后调用服务端的分片上传接口继续上传，以实现断点续传功能。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
public class ResumableUploadService
{
    private readonly HttpClient _httpClient;
    private readonly string _serviceUri;
    private const string UploadChunkApiUri = "/api/Upload/UploadChunk";
    private const string GetUploadStatusApiUri = "/api/Upload/GetUploadStatus";
    private const int ChunkSize = 1024 * 1024; // 1MB 每块

    public ResumableUploadService(string serviceUri)
    {
        _serviceUri = serviceUri;
        _httpClient = new HttpClient();
    }

    public async Task UploadWithResumeAsync(string filePath, CancellationToken cancellationToken)
    {
        var fileInfo = new FileInfo(filePath);
        var totalChunks = (int)Math.Ceiling((double)fileInfo.Length / ChunkSize);
        using var fileStream = File.OpenRead(filePath);
        var fileId = GetFileHash(fileStream, HashAlgorithmType.Sha256); // 基于文件内容生成唯一ID

        // 获取已上传的分片信息
        var uploadedChunks = await GetUploadedChunksAsync(fileId, cancellationToken);

        for (int chunkNumber = 0; chunkNumber < totalChunks; chunkNumber++)
        {
            if (uploadedChunks.Contains(chunkNumber))  continue; // 跳过已上传的分片

            fileStream.Seek(chunkNumber * ChunkSize, SeekOrigin.Begin);

            var chunkData = new byte[ChunkSize];
            var bytesRead = await fileStream.ReadAsync(chunkData, 0, ChunkSize, cancellationToken);

            if (bytesRead == 0) break;

            var actualChunkData = new byte[bytesRead];
            Array.Copy(chunkData, actualChunkData, bytesRead);

            await UploadChunkAsync(fileId, chunkNumber, totalChunks, fileInfo.Name, actualChunkData, cancellationToken);
        }
    }

    private static string GetFileHash(Stream stream, HashAlgorithmType hashAlgorithmType)
    {
        switch (hashAlgorithmType)
        {
            case HashAlgorithmType.Md5:
                using (var hashAlgorithm = MD5.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            case HashAlgorithmType.Sha256:
                using (var hashAlgorithm = SHA256.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            default:
                return string.Empty;
        }
    }

    private async Task<List<int>> GetUploadedChunksAsync(string fileId, CancellationToken cancellationToken)
    {
        try
        {
            var response = await _httpClient.GetAsync($"{_serviceUri}{GetUploadStatusApiUri}?fileId={fileId}");
            response.EnsureSuccessStatusCode();

            var json = await response.Content.ReadAsStringAsync(cancellationToken);
            return JsonSerializer.Deserialize<List<int>>(json);
        }
        catch
        {
            return new List<int>();
        }
    }

    private async Task UploadChunkAsync(string fileId, int chunkNumber, int totalChunks, string fileName, byte[] chunkData, CancellationToken cancellationToken)
    {
       // 同分片上传
    }
}

然后在客户端的UI线程中使用异步方式调用ResumableUploadService类中的断点续传方法。

1
2
3
4
var serviceUri = "http://localhost:5001";
var filePath = $"{disk}:\\{srcDir}\\{srcFile}";
var uploader = new ResumableUploadService(serviceUri);
await uploader.UploadWithResumeAsync(filePath, CancellationToken.None);

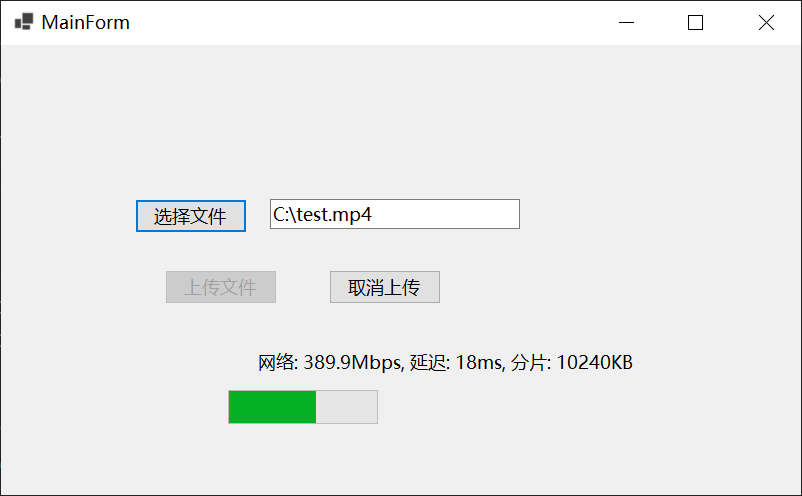

上传进度反馈与上传取消

通常情况下，大文件上传时需要给用户提供上传进度信息以及取消上传的功能，下面使用WinForm简单实现上述功能。

服务端实现

服务端代码延用断点续传，不再展示。

客户端实现

客户端的ResumableUploadService中的主要变化是添加了三个委托事件，分别用来更新上传百分比、状态消息、上传与取消按钮禁用状态。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
public class ResumableUploadService
{
    ...
    // 进度和状态事件
    public event Action<int> ProgressChanged; // 上传百分比
    public event Action<string> StatusChanged; // 状态消息
    public event Action<bool> UploadCompleted; // 完成状态

    public async Task UploadWithResumeAsync(string filePath, CancellationToken cancellationToken)
    {
        try
        {
            StatusChanged?.Invoke("正在准备上传...");

            var fileInfo = new FileInfo(filePath);
            var totalChunks = (int)Math.Ceiling((double)fileInfo.Length / ChunkSize);
            using var fileStream = File.OpenRead(filePath);
            var fileId = GetFileHash(fileStream, HashAlgorithmType.Sha256); // 基于文件内容生成唯一ID

            StatusChanged?.Invoke("正在检查已上传分片...");

            // 获取已上传的分片信息
            var uploadedChunks = await GetUploadedChunksAsync(fileId, cancellationToken);

            for (int chunkNumber = 0; chunkNumber < totalChunks; chunkNumber++)
            {
                cancellationToken.ThrowIfCancellationRequested();

                if (uploadedChunks.Contains(chunkNumber))
                {
                    ProgressChanged?.Invoke((int)((double)chunkNumber / totalChunks * 100));
                    continue;
                }

                fileStream.Seek(chunkNumber * ChunkSize, SeekOrigin.Begin);

                var chunkData = new byte[ChunkSize];
                var bytesRead = await fileStream.ReadAsync(chunkData, 0, ChunkSize, cancellationToken);

                if (bytesRead == 0) break;

                var actualChunkData = new byte[bytesRead];
                Array.Copy(chunkData, actualChunkData, bytesRead);

                StatusChanged?.Invoke($"正在上传分片 {chunkNumber + 1}/{totalChunks}");

                await UploadChunkAsync(fileId, chunkNumber, totalChunks, fileInfo.Name, actualChunkData, cancellationToken);

                var progress = (int)((double)(chunkNumber + 1) / totalChunks * 100);
                ProgressChanged?.Invoke(progress);
            }

            StatusChanged?.Invoke("上传完成！");
            UploadCompleted?.Invoke(true);
        }
        catch (OperationCanceledException)
        {
            StatusChanged?.Invoke("上传已取消");
            UploadCompleted?.Invoke(false);
        }
        catch (Exception ex)
        {
            StatusChanged?.Invoke($"上传失败: {ex.Message}");
            UploadCompleted?.Invoke(false);
        }
    }
    ...
}

主窗体MainForm中分别绑定三个委托事件到相应的UI线程上，使用Invoke跨线程更新UI，实现上传过程中实时更新上传进度及状态信息。

Control.InvokeRequired属性指示调用方在对控件进行方法调用时是否必须调用Invoke方法，因为调用方位于创建控件所在的线程以外的线程中。Windows窗体中的控件绑定到特定线程，并且不是线程安全的。因此，如果要从其他线程调用控件的方法，则必须使用控件的调用方法之一来封送对正确线程的调用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
public partial class MainForm : Form
{
    private readonly ResumableUploadService _uploader;
    private CancellationTokenSource _cts;
    private readonly string _serviceUri;

    public MainForm()
    {
        InitializeComponent();

        _serviceUri = "http://localhost:5001";
        _uploader = new ResumableUploadService(_serviceUri);

        // 绑定事件
        _uploader.ProgressChanged += UpdateProgress;
        _uploader.StatusChanged += UpdateStatus;
        _uploader.UploadCompleted += UploadCompleted;
    }

    private void UpdateProgress(int percent)
    {
        if (progressBar.InvokeRequired)
        {
            progressBar.Invoke(new Action<int>(UpdateProgress), percent);
            return;
        }
        progressBar.Value = percent;
    }

    private void UpdateStatus(string message)
    {
        if (lblStatus.InvokeRequired)
        {
            lblStatus.Invoke(new Action<string>(UpdateStatus), message);
            return;
        }
        lblStatus.Text = message;
    }

    private void UploadCompleted(bool success)
    {
        if (btnUpload.InvokeRequired)
        {
            btnUpload.Invoke(new Action<bool>(UploadCompleted), success);
            return;
        }
        btnUpload.Enabled = true;
        btnCancel.Enabled = false;
    }

    private async void btnUpload_Click(object sender, EventArgs e)
    {
        if (string.IsNullOrEmpty(textBox.Text) || !File.Exists(textBox.Text))
        {
            MessageBox.Show("请选择有效的文件");
            return;
        }

        btnUpload.Enabled = false;
        btnCancel.Enabled = true;
        progressBar.Value = 0;

        _cts = new CancellationTokenSource();
        await _uploader.UploadWithResumeAsync(textBox.Text,_cts.Token);
    }

    private void btnCancel_Click(object sender, EventArgs e)
    {
        _cts?.Cancel();
    }

    private void btnBrowse_Click(object sender, EventArgs e)
    {
        using var openFileDialog = new OpenFileDialog();
        if (openFileDialog.ShowDialog() == DialogResult.OK)
        {
            textBox.Text = openFileDialog.FileName;
        }
    }

    protected override void OnFormClosing(FormClosingEventArgs e)
    {
        _cts?.Cancel();
        base.OnFormClosing(e);
    }
}

并行上传

并行上传是提升大文件传输效率的有效手段，并行上传可将总时间缩短为单线程上传时间/N(N为并行度)。并行上传适合在不稳定的网络环境(如高延迟)中使用，可充分利用间歇性网络带宽。

并行上传时多个分片同时上报上传进度，进度条呈现更平滑，更适合需要实时进度反馈的场景。

服务端实现

服务端代码延用断点续传，不再展示。

客户端实现

客户端基于ResumableUploadService，创建了一个并行上传服务类ParallelUploadService，使用Parallel.ForEachAsync实现并行上传，并设置了最大并行度(默认为4)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
public class ParallelUploadService
{
    ...
    private readonly int _maxParallelism;

    public ParallelUploadService(string serviceUri, int maxParallelism = 4)
    {
        ...
        _maxParallelism = maxParallelism;
    }

    public async Task ParallelUploadFileAsync(string filePath, CancellationToken cancellationToken)
    {
        try
        {
            StatusChanged?.Invoke("正在准备上传...");

            var fileInfo = new FileInfo(filePath);
            var totalChunks = (int)Math.Ceiling((double)fileInfo.Length / ChunkSize);
            using var fileStream = File.OpenRead(filePath);
            var fileId = GetFileHash(fileStream, HashAlgorithmType.Sha256); // 基于文件内容生成唯一ID

            StatusChanged?.Invoke("正在检查已上传分片...");

            // 获取已上传的分片信息
            var uploadedChunks = await GetUploadedChunksAsync(fileId, cancellationToken);

            var chunksToUpload = Enumerable.Range(0, totalChunks).Where(chunk => !uploadedChunks.Contains(chunk)).ToList();

            var progressLock = new object();
            var uploadedCount = 0;
            var totalToUpload = chunksToUpload.Count;

            StatusChanged?.Invoke($"准备上传 {totalToUpload} 个分片...");

            var parallelOptions = new ParallelOptions
            {
                MaxDegreeOfParallelism = _maxParallelism,
                CancellationToken = cancellationToken
            };

            await Parallel.ForEachAsync(chunksToUpload, parallelOptions, async (chunkNumber, cancellationToken) =>
            {
                cancellationToken.ThrowIfCancellationRequested();

                fileStream.Seek(chunkNumber * ChunkSize, SeekOrigin.Begin);

                var chunkData = new byte[ChunkSize];
                var bytesRead = await fileStream.ReadAsync(chunkData, 0, ChunkSize, cancellationToken);

                var actualChunkData = new byte[bytesRead];
                Array.Copy(chunkData, actualChunkData, bytesRead);

                StatusChanged?.Invoke($"正在上传分片 {chunkNumber + 1}/{totalChunks}");

                await UploadChunkAsync(fileId, chunkNumber, totalChunks, fileInfo.Name, actualChunkData, cancellationToken);

                // 使用锁保证进度更新的原子性
                lock (progressLock)
                {
                    uploadedCount++;
                    var progress = (int)((double)uploadedCount / totalToUpload * 100);
                    ProgressChanged?.Invoke(progress);
                }
            });

            StatusChanged?.Invoke("上传完成！");
            UploadCompleted?.Invoke(true);
        }
        catch (OperationCanceledException)
        {
            StatusChanged?.Invoke("上传已取消");
            UploadCompleted?.Invoke(false);
        }
        catch (Exception ex)
        {
            StatusChanged?.Invoke($"上传失败: {ex.Message}");
            UploadCompleted?.Invoke(false);
        }
    }

    ...
}

主窗体MainForm中对于ParallelUploadService服务类的调用方式与ResumableUploadService类似，不再展示。

动态调整分片大小

根据网络状态动态调整分片大小，可以优化分片上传效率。

服务端实现

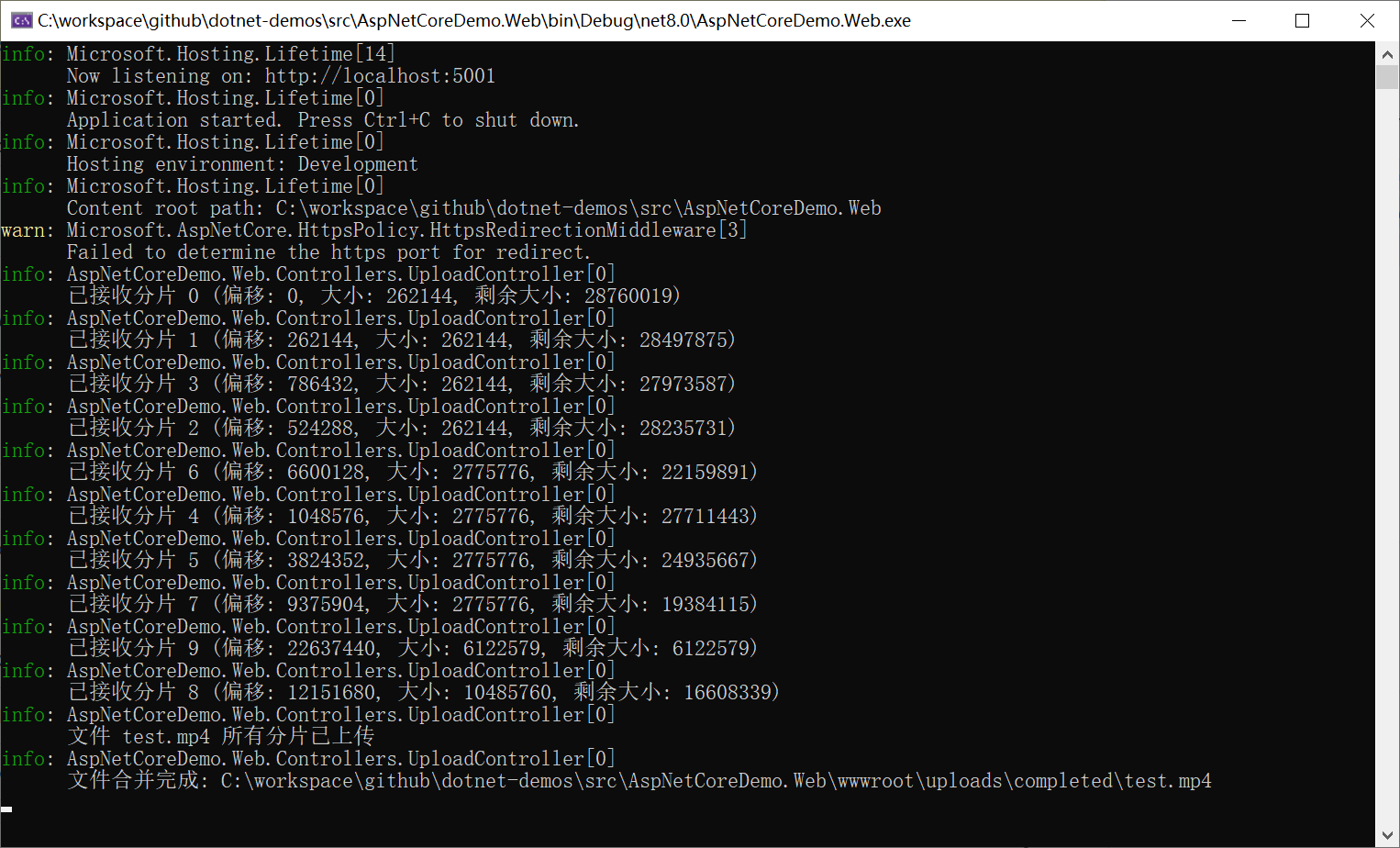

由于分片的大小是动态计算得出的，存储的临时文件名由fileId_chunkNumber变更为{fileId}/chunk_{offsetValue}。

服务端的分片存储结构如下：

uploads/
├── {fileId}/ // 每个文件一个独立目录
│ ├── chunk_{offsetValue1} // 分片文件按偏移量命名
│ ├── chunk_{offsetValue2}
│ └── …
└── completed/ // 最终合并的文件

由于上传是并行的，服务端在检查分片上传完整性时，必须以所有分片大小总和等于文件大小为标志，而不能以其中某一分片的偏移量+分片大小等于文件大小为标志。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
[ApiController]
[Route("[controller]/[action]")]
[Authorize]
public class UploadController: ControllerBase
{
    private readonly IWebHostEnvironment _env;
    private readonly string _uploadPath;
    private readonly ILogger<UploadController> _logger;

    public UploadController(IWebHostEnvironment env, ILogger<UploadController> logger)
    {
        _env = env;
        _uploadPath = Path.Combine(_env.WebRootPath, "uploads");
        _logger = logger;
    }

    [HttpGet]
    [AllowAnonymous]
    public IActionResult Ping()
    {
        return Ok(DateTime.UtcNow);
    }

    [HttpGet]
    [AllowAnonymous]
    public IActionResult GetUploadStatus(string fileId)
    {
        var uploadDir = Path.Combine(_uploadPath, fileId);
        if (!Directory.Exists(uploadDir))
        {
            return Ok(new { UploadedChunks = Array.Empty<UploadedChunk>() });
        }

        var chunks = Directory.GetFiles(uploadDir, "chunk_*")
            .Select(f => new FileInfo(f))
            .Select(f => new UploadedChunk
            {
                Offset = long.Parse(f.Name.Split('_')[1]),
                Size = (int)f.Length
            })
            .OrderBy(c => c.Offset)
            .ToList();

        return Ok(new { UploadedChunks = chunks });
    }

    [HttpPost]
    [AllowAnonymous]
    public async Task<IActionResult> UploadChunkAsync(CancellationToken cancellationToken)
    {
        var form = await Request.ReadFormAsync(cancellationToken);
        var fileId = form["fileId"].ToString();
        var chunkIndex = int.Parse(form["chunkIndex"].ToString());
        var chunkOffset = int.Parse(form["chunkOffset"].ToString());
        var chunkSize = int.Parse(form["chunkSize"].ToString());
        var fileSize = int.Parse(form["fileSize"].ToString());
        var fileName = form["fileName"].ToString();
        var chunk = form.Files["chunk"];

        try
        {
            // 验证分片
            if (chunk == null || chunk.Length == 0)
            {
                return BadRequest("无效的分片数据");
            }

            // 创建上传目录
            var uploadDir = Path.Combine(_uploadPath, fileId);
            Directory.CreateDirectory(uploadDir);

            // 保存分片
            var chunkPath = Path.Combine(uploadDir, $"chunk_{chunkOffset}");
            using (var stream = new FileStream(chunkPath, FileMode.Create))
            {
                await chunk.CopyToAsync(stream, cancellationToken);
            }

            _logger.LogInformation($"已接收分片 {chunkIndex} (偏移: {chunkOffset}, 大小: {chunk.Length}, 剩余大小: {fileSize - chunkOffset})");

            // 检查是否完成
            if (IsUploadComplete(fileId, fileSize))
            {
                _logger.LogInformation($"文件 {fileName} 所有分片已上传");
                return Ok(new { Completed = true });
            }

            return Ok(new { Completed = false });
        }
        catch(OperationCanceledException ex)
        {
            // 客户端主动取消上传，最后一个分片可能未完整上传，需要进行删除，否则客户端断点续传时，在对分片信息的更新过程中会发生错误
            System.IO.File.Delete(Path.Combine(Path.Combine(_uploadPath, fileId), $"chunk_{chunkOffset}"));
            var errorMsg = $"分片上传失败:{ex.Message}, 分片 chunk_{chunkOffset} 已删除！";
            _logger.LogError(errorMsg);
            return BadRequest(errorMsg);
        }
        catch (Exception ex)
        {
            var errorMsg = $"分片上传失败:{ex.Message}";
            _logger.LogError(errorMsg);
            return BadRequest(errorMsg);
        }
    }

    [HttpPost]
    [AllowAnonymous]
    public async Task<IActionResult> MergeChunksAsync(MergeFile mergeFile, CancellationToken cancellationToken)
    {
        var uploadDir = Path.Combine(_uploadPath, mergeFile.FileId);
        var finalDir = Path.Combine(_uploadPath, "completed");
        var finalPath = Path.Combine(finalDir, mergeFile.FileName);
        if (!Directory.Exists(finalDir))
        {
            Directory.CreateDirectory(finalDir);
        }

        // 获取所有分片并按偏移量排序
        var chunkFiles = Directory.GetFiles(uploadDir, "chunk_*")
            .Select(f => new
            {
                Path = f,
                Offset = long.Parse(Path.GetFileName(f).Split('_')[1])
            })
            .OrderBy(x => x.Offset)
            .ToList();

        // 合并文件
        using (var finalStream = new FileStream(finalPath, FileMode.Create))
        {
            foreach (var chunk in chunkFiles)
            {
                using (var chunkStream = System.IO.File.OpenRead(chunk.Path))
                {
                    await chunkStream.CopyToAsync(finalStream, cancellationToken);
                }
                System.IO.File.Delete(chunk.Path);
            }
        }

        // 清理临时目录
        Directory.Delete(uploadDir);

        using var stream = System.IO.File.OpenRead(finalPath);
        var mergeFileId = GetFileHash(stream, HashAlgorithmType.Sha256);
        if (!mergeFile.FileId.Equals(mergeFileId))
        {
            stream.Close();
            System.IO.File.Delete(finalPath);
            var errorMsg = $"合并后的文件内容哈希不正确，文件可能已损坏，合并前内容哈希为{mergeFile.FileId}, 合并后内容哈希为{mergeFileId}, 合并后的文件已被删除，请重新上传！";
            _logger.LogError(errorMsg);
            return BadRequest(errorMsg);
        }

        _logger.LogInformation($"文件合并完成: {finalPath}");

        return Ok();
    }

    #region private methods
    private static string GetFileHash(Stream stream, HashAlgorithmType hashAlgorithmType)
    {
        switch (hashAlgorithmType)
        {
            case HashAlgorithmType.Md5:
                using (var hashAlgorithm = MD5.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            case HashAlgorithmType.Sha256:
                using (var hashAlgorithm = SHA256.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            default:
                return string.Empty;
        }
    }

    private bool IsUploadComplete(string fileId, long fileSize)
    {
        var status = GetUploadStatus(fileId) as OkObjectResult;
        var data = status?.Value as dynamic;
        var chunks = data?.UploadedChunks as IEnumerable<UploadedChunk>;

        if (chunks == null || !chunks.Any())
        {
            return false;
        }

        // 获取文件总大小(最后一个分片的结束位置)
        // 请勿使用chunks.Max(c => c.Offset + c.Size), 该值在单线程环境中可以代表所有分片都已上传完毕, 但在多线程环境中是错误的
        long currentTotalSize = chunks.Sum(c => c.Size);

        // 检查是否覆盖了所有字节
        return currentTotalSize >= fileSize;
    }

    #endregion

    #region public class
    public class UploadedChunk
    {
        public long Offset { get; set; }
        public int Size { get; set; }
    }

    public class MergeFile
    {
        public string FileId { get; set; }
        public string FileName { get; set; }
    }
    #endregion
}

调用服务端上传时的日志记录如下，可以看到分片的上传是乱序的：

客户端实现

客户端实现了AdaptiveResumableUploadService服务类，在并行上传与断点续传的基础上，添加了实时更新网络指标(上行速度/网络延迟)并动态计算当前分片大小的功能，并使用了异步锁SemaphoreSlim确保分片信息更新时的原子性。

注：请勿使用同步锁lock，否则会报错Object synchronization method was called from an unsynchronized block of code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
public class AdaptiveResumableUploadService
{
    private readonly HttpClient _httpClient;
    private readonly string _serviceUri;
    private const string UploadChunkApiUri = "/api/Upload/UploadChunk";
    private const string GetUploadStatusApiUri = "/api/Upload/GetUploadStatus";
    private const string MergeChunksApiUri = "/api/Upload/MergeChunks";
    private const string PingApiUri = "/api/Ping";
    private readonly int _maxParallelism;
    private readonly int _minChunkSize;
    private readonly int _maxChunkSize;
    private readonly int _initialChunkSize;

    // 网络状况监测
    private double _averageUploadSpeedMbps = 1.0; // 初始假设1Mbps
    private double _averageLatencyMs = 100; // 初始延迟100ms
    private readonly object _networkLock = new object();
    private readonly SemaphoreSlim _semaphoreSlim = new SemaphoreSlim(1, 1);

    // 进度和状态事件
    public event Action<int> ProgressChanged; // 上传百分比
    public event Action<string> StatusChanged; // 状态消息
    public event Action<bool> UploadCompleted; // 完成状态

    public AdaptiveResumableUploadService(string serviceUri,
        int maxParallelism =  4,
        int minChunkSize = 256 * 1024,    // 256KB
        int maxChunkSize = 10 * 1024 * 1024, // 10MB
        int initialChunkSize = 1 * 1024 * 1024) // 1MB
    {
        _serviceUri = serviceUri;
        _httpClient = new HttpClient();
        _httpClient.Timeout = Timeout.InfiniteTimeSpan;
        _maxParallelism = maxParallelism;
        _minChunkSize = minChunkSize;
        _maxChunkSize = maxChunkSize;
        _initialChunkSize = initialChunkSize;
    }

    // 主上传方法
    public async Task UploadFileAdaptiveAsync(string filePath, CancellationToken cancellationToken)
    {
        try
        {
            StatusChanged?.Invoke("正在准备上传...");

            var fileInfo = new FileInfo(filePath);
            using var fileStream = File.OpenRead(filePath);
            var fileId = GetFileHash(fileStream, HashAlgorithmType.Sha256); // 基于文件内容生成唯一ID

            StatusChanged?.Invoke("正在检查已上传分片...");

            // 获取已上传的分片信息
            var uploadedChunks = await GetUploadedChunksAsync(fileId, cancellationToken);

            // 准备上传任务
            var currentChunkSize = _initialChunkSize;
            var fileSize = fileInfo.Length;

            var progressLock = new object();
            long totalUploaded = uploadedChunks.Values.Sum();
            long totalToUpload = fileSize - totalUploaded;

            StatusChanged?.Invoke($"需要上传 {totalToUpload} 字节");

            var parallelOptions = new ParallelOptions
            {
                MaxDegreeOfParallelism = _maxParallelism,
                CancellationToken = cancellationToken
            };


            await Parallel.ForEachAsync(GenerateChunks(fileSize, currentChunkSize, uploadedChunks), parallelOptions, async (chunk, cancellationToken) =>
            {
                cancellationToken.ThrowIfCancellationRequested();

                bool success = await UploadChunkAsync(fileId, chunk.Index, chunk.Offset, chunk.Size, fileSize, fileInfo.Name, fileStream, cancellationToken);

                if (success)
                {
                    // 使用锁保证进度更新的原子性
                    lock (progressLock)
                    {
                        totalUploaded += chunk.Size;
                        int progress = (int)((double)totalUploaded / fileSize * 100);
                        ProgressChanged?.Invoke(progress);
                    }
                }
            });

            ProgressChanged?.Invoke(100);
            await MergeChunksAsync(fileId, fileInfo.Name, cancellationToken);

            StatusChanged?.Invoke("上传完成！");
            UploadCompleted?.Invoke(true);
        }
        catch (OperationCanceledException)
        {
            StatusChanged?.Invoke("上传已取消");
            UploadCompleted?.Invoke(false);
        }
        catch (Exception ex)
        {
            StatusChanged?.Invoke($"上传失败: {ex.Message}");
            UploadCompleted?.Invoke(false);
        }
    }

    // 获取已上传的分片信息
    private async Task<ConcurrentDictionary<long, int>> GetUploadedChunksAsync(string fileId, CancellationToken cancellationToken)
    {
        try
        {
            var response = await _httpClient.GetAsync($"{_serviceUri}{GetUploadStatusApiUri}?fileId={fileId}", cancellationToken);
            response.EnsureSuccessStatusCode();

            var result = await response.Content.ReadFromJsonAsync<UploadStatusResponse>(cancellationToken);
            return new ConcurrentDictionary<long, int>(result.UploadedChunks.ToDictionary(x => x.Offset, x => x.Size));
        }
        catch
        {
            return new ConcurrentDictionary<long, int>();
        }
    }

    // 上传单个分片
    private async Task<bool> UploadChunkAsync(string fileId, int chunkIndex, long chunkOffset, int chunkSize, long fileSize,  string fileName, Stream fileStream, CancellationToken cancellationToken)
    {
        var stopwatch = Stopwatch.StartNew();

        try
        {
            // 测量请求延迟
            var latencyStopwatch = Stopwatch.StartNew();
            var pingResponse = await _httpClient.GetAsync($"{_serviceUri}{PingApiUri}", cancellationToken);
            latencyStopwatch.Stop();

            // 准备分片数据
            var chunkData = new byte[chunkSize];
            fileStream.Seek(chunkOffset, SeekOrigin.Begin);
            var bytesRead = await fileStream.ReadAsync(chunkData, 0, chunkSize, cancellationToken);

            if (bytesRead == 0) return false;

            using var content = new MultipartFormDataContent
            {
                { new StringContent(fileId), "fileId" },
                { new StringContent(chunkIndex.ToString()), "chunkIndex" },
                { new StringContent(chunkOffset.ToString()), "chunkOffset" },
                { new StringContent(bytesRead.ToString()), "chunkSize"},
                { new StringContent(fileSize.ToString()), "fileSize"},
                { new StringContent(fileName), "fileName" },
                { new ByteArrayContent(chunkData, 0, bytesRead), "chunk", "chunk.dat" }
            };

            // 上传
            var uploadStopwatch = Stopwatch.StartNew();
            var response = await _httpClient.PostAsync($"{_serviceUri}{UploadChunkApiUri}", content, cancellationToken);
            uploadStopwatch.Stop();

            if (!response.IsSuccessStatusCode)
            {
                var error = await response.Content.ReadAsStringAsync(cancellationToken);
                throw new HttpRequestException(error);
            }

            // 更新网络指标
            UpdateNetworkMetrics(bytesRead, uploadStopwatch.Elapsed, latencyStopwatch.Elapsed);
            return true;
        }
        finally
        {
            stopwatch.Stop();
        }
    }

    // 上传完所有分片后合并分片
    private async Task MergeChunksAsync(string fileId, string fileName, CancellationToken cancellationToken)
    {
        var stringContent = new StringContent(JsonSerializer.Serialize(new { FileId = fileId, FileName = fileName }), Encoding.UTF8, "application/json");
        var response = await _httpClient.PostAsync($"{_serviceUri}{MergeChunksApiUri}", stringContent, cancellationToken);

        if (!response.IsSuccessStatusCode)
        {
            var error = await response.Content.ReadAsStringAsync(cancellationToken);
            throw new HttpRequestException(error);
        }
    }

    private static string GetFileHash(Stream stream, HashAlgorithmType hashAlgorithmType)
    {
        switch (hashAlgorithmType)
        {
            case HashAlgorithmType.Md5:
                using (var hashAlgorithm = MD5.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            case HashAlgorithmType.Sha256:
                using (var hashAlgorithm = SHA256.Create())
                {
                    var hash = hashAlgorithm.ComputeHash(stream);
                    return BitConverter.ToString(hash).Replace("-", "").ToLower();
                }
            default:
                return string.Empty;
        }
    }

    #region 更新网络指标并动态计算当前分片大小
    // 动态计算当前分片大小
    private int CalculateDynamicChunkSize()
    {
        lock (_networkLock)
        {
            // 基于当前上传速度和延迟计算理想分片大小
            double targetUploadTimeSec = 2.0; // 目标每个分片上传时间
            double speedFactor = _averageUploadSpeedMbps* 125000; // Mbps -> bytes/sec
            double latencyFactor = Math.Max(1, _averageLatencyMs / 50);

            int idealSize = (int)(speedFactor * targetUploadTimeSec / latencyFactor);

            // 限制在最小和最大值之间
            return (int)Math.Clamp(idealSize, _minChunkSize, _maxChunkSize);
        }
    }

    // 更新网络指标
    private void UpdateNetworkMetrics(long chunkSize, TimeSpan uploadTime, TimeSpan latency)
    {
        lock (_networkLock)
        {
            // 计算速度 (Mbps)
            double speedMbps = (chunkSize * 8 / uploadTime.TotalSeconds) / 1_000_000;
            // 平滑处理速度值（加权平均）
            _averageUploadSpeedMbps = 0.7 * _averageUploadSpeedMbps + 0.3 * speedMbps;
            // 更新延迟
            _averageLatencyMs = 0.8 * _averageLatencyMs + 0.2 * latency.TotalMilliseconds;

            StatusChanged?.Invoke($"网络: {_averageUploadSpeedMbps:F1}Mbps, " +
                                $"延迟: {_averageLatencyMs:F0}ms, " +
                                $"分片: {CalculateDynamicChunkSize() / 1024}KB");
        }
    }

    private IEnumerable<FileChunk> GenerateChunks(long fileSize, int currentChunkSize, ConcurrentDictionary<long, int> uploadedChunks)
    {
        long position = 0;
        int chunkIndex = 0;

        while (position < fileSize)
        {
            _semaphoreSlim.WaitAsync(); // 使用异步锁确保分片信息更新时的原子性
            if (!uploadedChunks.TryGetValue(position, out var chunkSize))
            {
                // 动态调整分片大小
                currentChunkSize = CalculateDynamicChunkSize();
                var actualChunkSize = (int)Math.Min(currentChunkSize, fileSize - position);

                // 惰性求值: 迭代器代码直到开始遍历才会执行，每次迭代时返回一个值，并保持当前执行状态(局部变量、执行位置等)
                yield return new FileChunk
                {
                    Index = chunkIndex,
                    Offset = position,
                    Size = actualChunkSize,
                    RemainingSize = fileSize - (position + actualChunkSize)
                };

                position += actualChunkSize;
            }
            else
            {
                position += chunkSize;
            }

            chunkIndex++;

            _semaphoreSlim.Release();
        }
    }
    #endregion


    #region record
    private record UploadedChunk
    {
        public long Offset { get; init; }
        public int Size { get; init; }
    }

    private record UploadStatusResponse
    {
        public List<UploadedChunk> UploadedChunks { get; init; }
    }

    private record FileChunk
    {
        public int Index { get; init; }
        public long Offset { get; init; }
        public int Size { get; init; }
        public long RemainingSize { get; init; }
    }
    #endregion
}

最终实现的效果如下：

完整性校验

完整性校验包含两个方面：

  • 分片完整性校验：校验单个分片的完整性，用于检测网络传输错误(一般使用MD5校验)
  • 文件完整性校验：校验合并后最终文件的完整性，确保内容安全(建议使用SHA-256校验)

在计算哈希值时应当仅读取文件内容，避免隐藏的元数据差异(文件创建/修改日期等)造成哈希值不同。

分片完整校验

以下为服务端UploadChunkAsync接口对于分片完整校验的部分代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[HttpPost]
[AllowAnonymous]
public async Task<IActionResult> UploadChunkAsync(CancellationToken cancellationToken)
{
    ...
    var chunkHash = form["chunkHash"].ToString();
    ...

    ...
    using var chunkStream = System.IO.File.OpenRead(chunkPath);
    var revievedChunkHash = GetFileHash(chunkStream, HashAlgorithmType.Md5);
    if (!chunkHash.Equals(revievedChunkHash))
    {
        chunkStream.Close();
        System.IO.File.Delete(chunkPath);
        var errorMsg = $"分片完整性校验失败，原始分片哈希为{chunkHash}, 接收到的分片哈希为{revievedChunkHash}, 分片 {chunkIndex} 已被删除，请重新上传！";
        _logger.LogError(errorMsg);
        return BadRequest(errorMsg);
    }
    ...
}

以下为客户端UploadChunkAsync方法对于分片完整性校验的部分代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
private async Task<bool> UploadChunkAsync(string fileId, int chunkIndex, long chunkOffset, int chunkSize, long fileSize,  string fileName, Stream fileStream, CancellationToken cancellationToken)
{
    ...
    var chunkData = new byte[chunkSize];
    fileStream.Seek(chunkOffset, SeekOrigin.Begin);
    var bytesRead = await fileStream.ReadAsync(chunkData, 0, chunkSize, cancellationToken);
    using var stream = new MemoryStream(chunkData);
    var chunkHash = GetFileHash(stream, HashAlgorithmType.Md5);
    ...

    ...
    using var content = new MultipartFormDataContent
    {
        ...
        { new StringContent(chunkHash.ToString()), "chunkHash"},
        ...
    };
    ...
}

文件完整性校验

以下为服务端MergeChunksAsync接口中对于文件完整性校验的部分代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[HttpPost]
[AllowAnonymous]
public async Task<IActionResult> MergeChunksAsync(MergeFile mergeFile, CancellationToken cancellationToken)
{
    ...
    using var stream = System.IO.File.OpenRead(finalPath);
    var mergeFileId = GetFileHash(stream, HashAlgorithmType.Sha256);
    if (!mergeFile.FileId.Equals(mergeFileId))
    {
        stream.Close();
        System.IO.File.Delete(finalPath);
        var errorMsg = $"合并后的文件内容哈希不正确，文件可能已损坏，合并前内容哈希为{mergeFile.FileId}, 合并后内容哈希为{mergeFileId}, 合并后的文件已被删除，请重新上传！";
        _logger.LogError(errorMsg);
        return BadRequest(errorMsg);
    }
    ...
}

重传尝试

分片上传过程中存在各种不稳定的因素(如网络波动)，可以为客户端上传服务类添加重传尝试机制，在上传失败后自动重新上传。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
public class AdaptiveResumableUploadService
{
    ...
    private readonly int _maxRetryCount;

    public AdaptiveResumableUploadService(
    ...,
    int maxRetryCount = 10)
    {
        ...
        _maxRetryCount = maxRetryCount;
    }

    // 主上传方法
    public async Task UploadFileAdaptiveAsync(string filePath, CancellationToken cancellationToken)
    {
        try
        {
            StatusChanged?.Invoke("正在准备上传...");

            var fileInfo = new FileInfo(filePath);
            using var fileStream = File.OpenRead(filePath);
            var fileId = GetFileHash(fileStream, HashAlgorithmType.Sha256); // 基于文件内容生成唯一ID

            StatusChanged?.Invoke("正在检查已上传分片...");

            // 准备上传任务
            var currentChunkSize = _initialChunkSize;
            var fileSize = fileInfo.Length;

            var progressLock = new object();

            var parallelOptions = new ParallelOptions
            {
                MaxDegreeOfParallelism = _maxParallelism,
                CancellationToken = cancellationToken
            };

            var retryCount = 0;
            var completed = false;
            while (!completed && retryCount < _maxRetryCount)
            {
                // 获取已上传的分片信息
                var uploadedChunks = await GetUploadedChunksAsync(fileId, cancellationToken);
                var totalUploaded = uploadedChunks.Values.Sum();
                long totalToUpload = fileSize - totalUploaded;
                StatusChanged?.Invoke($"需要上传 {totalToUpload} 字节");
                try
                {
                    await Parallel.ForEachAsync(GenerateChunks(fileSize, currentChunkSize, uploadedChunks), parallelOptions, async (chunk, cancellationToken) =>
                    {
                        cancellationToken.ThrowIfCancellationRequested();

                        bool success = await UploadChunkAsync(fileId, chunk.Index, chunk.Offset, chunk.Size, fileSize, fileInfo.Name, fileStream, cancellationToken);

                        if (success)
                        {
                            // 使用锁保证进度更新的原子性
                            lock (progressLock)
                            {
                                totalUploaded += chunk.Size;
                                int progress = (int)((double)totalUploaded / fileSize * 100);
                                ProgressChanged?.Invoke(progress);
                            }
                        }
                    });

                    await MergeChunksAsync(fileId, fileInfo.Name, cancellationToken);
                    completed = true;
                    ProgressChanged?.Invoke(100);
                    StatusChanged?.Invoke("上传完成！");
                    UploadCompleted?.Invoke(true);
                }
                catch
                {
                    retryCount++;
                    if (retryCount >= _maxRetryCount) throw;
                    await Task.Delay(100 * retryCount, cancellationToken);
                }
            }
        }
        catch (OperationCanceledException)
        {
            StatusChanged?.Invoke("上传已取消");
            UploadCompleted?.Invoke(false);
        }
        catch (Exception ex)
        {
            StatusChanged?.Invoke($"上传失败: {ex.Message}");
            UploadCompleted?.Invoke(false);
        }
    }
}

分片定时清理

断点续传留下的分片会随着时间在服务器上越积越多，因此需要有一个分片定时清理策略。

首先在服务端创建一个后台任务配置类，用于读取appsettings.json中的后台任务配置项，并在Program.cs中注册配置项，

1
2
3
4
5
6
7
8
public class BackgroundJobOptions
{
    public int StartHour { get; set; }
    public int StartMinute { get; set; }
    public int StartSecond { get; set; }
    public int IntervalMinute { get; set; }
    public int CleanUpDaysAgo { get; set; }
}
1
2
// 注册配置类
builder.Services.Configure<BackgroundJobOptions>(builder.Configuration.GetSection("BackgroundJobOptions"));

appsettings.json中的配置项如下所示。

1
2
3
4
5
6
7
8
9
10
{
  "BackgroundJobOptions": {
    "StartHour": 10,
    "StartMinute": 30,
    "StartSecond": 0,
    "IntervalMinute": 1440,
    "CleanUpDaysAgo": 7
  }
}

然后定义IWorkServie和WorkService，作为分片定时清理服务类。

1
2
3
4
public interface IWorkService
{
    Task TaskWorkAsync(CancellationToken cancellationToken);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
public class WorkService : IWorkService
{
    private int executionCount = 0;
    private readonly ILogger<WorkService> _logger;
    private DateTime nextDateTime;
    private readonly IWebHostEnvironment _env;
    private readonly BackgroundJobOptions _backgroundJobOptions;

    public WorkService(ILogger<WorkService> logger, IWebHostEnvironment env, IOptions<BackgroundJobOptions> backgroundJobOptions)
    {
        _logger = logger;
        _env = env;
        _backgroundJobOptions = backgroundJobOptions.Value;
    }

    public async Task TaskWorkAsync(CancellationToken cancellationToken)
    {
        while (!cancellationToken.IsCancellationRequested)
        {
            // 计算下一个时间节点
            var now = DateTime.Now;
            var firstDateTime = new DateTime(now.Year, now.Month, now.Day, _backgroundJobOptions.StartHour, _backgroundJobOptions.StartMinute, _backgroundJobOptions.StartSecond);
            if (executionCount == 0)
            {
                nextDateTime = firstDateTime;
            }
            else
            {
                nextDateTime = nextDateTime.AddMinutes(_backgroundJobOptions.IntervalMinute);
            }

            if (nextDateTime < now)
            {
                var delay = nextDateTime.AddDays(1) - now;
                await Task.Delay(delay, cancellationToken);
            }
            else
            {
                var delay = nextDateTime - now;
                await Task.Delay(delay, cancellationToken);
                    CleanupOldUploads(_backgroundJobOptions.CleanUpDaysAgo);

                var count = Interlocked.Increment(ref executionCount);
                _logger.LogInformation("已完成分片自动清理. 累计清理次数: {Count}", count);
            }

        }
    }

    private void CleanupOldUploads(int daysAgo)
    {
        var cutoff = DateTime.Now.AddDays(-daysAgo);
        var uploadPath = Path.Combine(_env.WebRootPath, "uploads");
        foreach (var dir in Directory.GetDirectories(uploadPath))
        {
            var dirName = dir.Split('\\').Last();
            if (!"completed".Equals(dirName) && Directory.GetCreationTime(dir) < cutoff)
            {
                Directory.Delete(dir, true);
            }
        }
    }
}

然后创建一个后台服务类UploadCleanupService继承BackgroundService，并调用WorkService中的分片定时清理服务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class UploadCleanupService : BackgroundService
{
    private readonly IServiceProvider _services;

    public UploadCleanupService(IServiceProvider services)
    {
        _services = services;
    }

    protected override async Task ExecuteAsync(CancellationToken stoppingToken)
    {
        using var scope = _services.CreateScope();
        //获取服务类
        var taskWorkService = scope.ServiceProvider.GetRequiredService<IWorkService>();
        //执行服务类的定时任务
        await taskWorkService.TaskWorkAsync(stoppingToken);
    }
}

最后在Program.cs中注册后台服务。

1
2
// 注册后台服务
builder.Services.AddHostedService<UploadCleanupService>();

断点续传下载

与断点续传上传类似，断点续传下载同样包含下载进度反馈、下载取消、并行下载等辅助功能。

下面我们来简单实现上述功能。

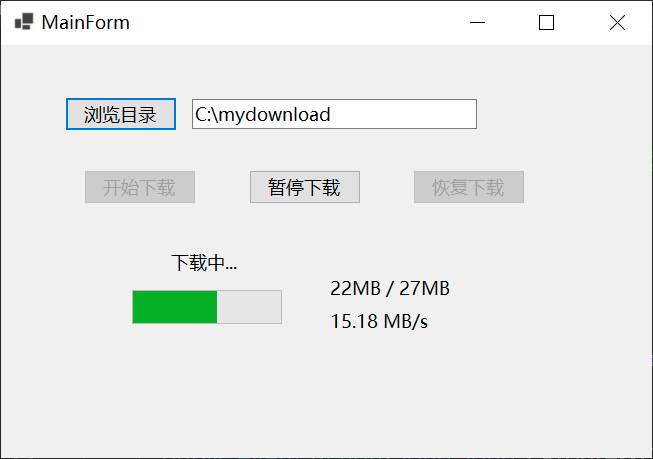

下载进度反馈与下载取消

服务端实现

由于断点续传上传中使用了wwwroot静态资源文件夹，服务端的文件可直接通过url访问。确保Program.cs中启用了静态文件服务。

1
2
// 启用静态文件服务
app.UseStaticFiles();

客户端实现

首先创建一个ResumableDownloadService服务类，根据传入的服务器文件地址，使用Range头请求从断点处继续下载(确保服务器支持Range请求头)，并提供进度条反馈和取消下载功能。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
public class ResumableDownloadService
{
    private readonly HttpClient _httpClient;

    // 进度和状态事件
    public event Action<int> ProgressChanged; // 上传百分比
    public event Action<string> StatusChanged; // 状态消息
    public event Action<bool> DownloadCompleted; // 完成状态

    public ResumableDownloadService()
    {
        _httpClient = new HttpClient();
    }

    public async Task DownloadWithResumeAsync(string fileUrl, string destDir, CancellationToken cancellationToken)
    {
        try
        {
            // 检查目标文件是否已存在部分下载内容
            long existingLength = 0;
            var destFile = fileUrl.Split("/").Last();
            var destinationPath = $"{destDir}\\{destFile}";
            if (!Directory.Exists(destDir))
            {
                Directory.CreateDirectory(destDir);
            }

            if (File.Exists(destinationPath))
            {
                existingLength = new FileInfo(destinationPath).Length;
            }

            // 使用 Range 头请求从断点处继续下载
            using var request = new HttpRequestMessage(HttpMethod.Get, fileUrl);
            if (existingLength > 0)
            {
                request.Headers.Range = new RangeHeaderValue(existingLength, null);
            }

            using var response = await _httpClient.SendAsync(request, HttpCompletionOption.ResponseHeadersRead, cancellationToken);
            if (!response.IsSuccessStatusCode)
            {
                if (response.StatusCode == System.Net.HttpStatusCode.RequestedRangeNotSatisfiable)
                {
                    StatusChanged?.Invoke("下载完成！"); // Range头请求范围超出文件大小，视为下载完成
                    ProgressChanged?.Invoke(100);
                    DownloadCompleted?.Invoke(true);
                    return;
                }
            }

            var fileTotalLength = response.Content.Headers.ContentLength;

            using var contentStream = await response.Content.ReadAsStreamAsync(cancellationToken);
            using var fileStream = new FileStream(destinationPath, existingLength > 0 ? FileMode.Append : FileMode.Create, FileAccess.Write, FileShare.None);
            var buffer = new byte[8192];
            int bytesRead;
            long totalRead = 0;

            while ((bytesRead = await contentStream.ReadAsync(buffer, 0, buffer.Length, cancellationToken)) > 0)
            {
                await fileStream.WriteAsync(buffer, 0, bytesRead, cancellationToken);
                totalRead += bytesRead;

                int progress = (int)((double)totalRead / fileTotalLength * 100);
                ProgressChanged?.Invoke(progress);
                StatusChanged?.Invoke($"当前上传进度: {progress}%");
            }

            StatusChanged?.Invoke("下载完成！");
            DownloadCompleted?.Invoke(true);
        }
        catch (OperationCanceledException)
        {
            StatusChanged?.Invoke("下载已取消");
            DownloadCompleted?.Invoke(false);
        }
        catch (Exception ex)
        {
            StatusChanged?.Invoke($"上传失败: {ex.Message}");
            DownloadCompleted?.Invoke(false);
        }
    }
}

与上传类似，主窗体MainForm中的代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
public partial class MainForm : Form
{
    private readonly string _serviceUri;
    private readonly ResumableDownloadService _downloader;
    private CancellationTokenSource _cts;

    public MainForm()
    {
        InitializeComponent();

        _serviceUri = "http://localhost:5001";
        _downloader = new ResumableDownloadService();

        // 绑定事件
        _downloader.ProgressChanged += UpdateProgress;
        _downloader.StatusChanged += UpdateStatus;
        _downloader.DownloadCompleted += UploadCompleted;
    }

    private void UpdateProgress(int percent)
    {
        if (progressBar.InvokeRequired)
        {
            progressBar.Invoke(new Action<int>(UpdateProgress), percent);
            return;
        }
        progressBar.Value = percent;
    }

    private void UpdateStatus(string message)
    {
        if (lblStatus.InvokeRequired)
        {
            lblStatus.Invoke(new Action<string>(UpdateStatus), message);
            return;
        }
        lblStatus.Text = message;
    }

    private void UploadCompleted(bool success)
    {
        if (btnDownload.InvokeRequired)
        {
            btnDownload.Invoke(new Action<bool>(UploadCompleted), success);
            return;
        }
        btnDownload.Enabled = true;
        btnCancel.Enabled = false;
    }

    private async void btnDownload_Click(object sender, EventArgs e)
    {
        if (string.IsNullOrEmpty(textBox.Text) || !Directory.Exists(textBox.Text))
        {
            MessageBox.Show("请选择有效目录！");
            return;
        }

        btnDownload.Enabled = false;
        btnCancel.Enabled = true;
        progressBar.Value = 0;

        _cts = new CancellationTokenSource();
        string fileUrl = $"{_serviceUri}/uploads/completed/test.mp4";
        string destDir = textBox.Text;
        await _downloader.DownloadWithResumeAsync(fileUrl, destDir, _cts.Token);
    }

    private void btnBrowse_Click(object sender, EventArgs e)
    {
        using var folderBrowserDialog = new FolderBrowserDialog();
        // 设置对话框标题
        folderBrowserDialog.Description = "请选择保存文件的目录";
        // 设置初始目录（可选）
        folderBrowserDialog.SelectedPath = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments);

        // 显示对话框
        if (folderBrowserDialog.ShowDialog() == DialogResult.OK)
        {
            // 获取用户选择的目录路径
            textBox.Text = folderBrowserDialog.SelectedPath;
        }
    }

    private void btnCancel_Click(object sender, EventArgs e)
    {
        _cts?.Cancel();
    }

    protected override void OnFormClosing(FormClosingEventArgs e)
    {
        _cts?.Cancel();
        base.OnFormClosing(e);
    }
}

并行下载与暂停恢复

客户端实现

首先创建一个ParallelDownloadService服务类，默认并发下载线程数为4，并使用并发字典记录CancellationTokenSource，以便实现下载的暂停和恢复。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
public class ParallelDownloadService
{
    private readonly HttpClient _httpClient;
    private readonly ConcurrentDictionary<int, CancellationTokenSource> _activeDownloads;
    private const int BufferSize = 8192; // 缓冲区 8KB
    private const int ChunkSize = 1024 * 1024; // 1MB 每块
    private readonly int _maxParallelism;
    private readonly SemaphoreSlim _semaphoreSlim = new SemaphoreSlim(1, 1);  // 使用SemaphoreSlim实现异步锁，初始化时设置最大并发数为 1

    // 进度和状态事件
    public event Action<long, long> ProgressChanged; // 当前下载量, 总大小
    public event Action<int> DownloadCompleted;     // 下载ID
    public event Action<int, Exception> DownloadFailed; // 下载ID, 异常

    public ParallelDownloadService(int maxParallelism = 4)
    {
        _httpClient = new HttpClient();
        _httpClient.Timeout = Timeout.InfiniteTimeSpan;
        _activeDownloads = new ConcurrentDictionary<int, CancellationTokenSource>();
        _maxParallelism = maxParallelism;
    }

    public async Task<int> StartParallelDownloadAsync(string fileUrl, string destDir)
    {
        var downloadId = fileUrl.GetHashCode();
        var cts = new CancellationTokenSource();
        _activeDownloads.TryAdd(downloadId, cts);

        try
        {
            // 获取文件总大小
            var fileSize = await GetFileSizeAsync(fileUrl);

            // 创建目标文件
            var destFile = fileUrl.Split("/").Last();
            var destinationPath = $"{destDir}\\{destFile}";
            var tempDir = $"{destDir}\\temp";
            var tempPath = $"{tempDir}\\{Path.GetFileNameWithoutExtension(destFile)}.tmp";
            if (!Directory.Exists(destDir)) Directory.CreateDirectory(destDir);
            if (!Directory.Exists(tempDir)) Directory.CreateDirectory(tempDir);
            using (var fs = new FileStream(tempPath, FileMode.Create, FileAccess.Write))
            {
                fs.SetLength(fileSize);
            }

            // 计算分片
            var chunks = CalculateChunks(fileSize, _maxParallelism);

            // 并行下载
            await Task.Run(() => Parallel.ForEachAsync(chunks, new ParallelOptions
            {
                MaxDegreeOfParallelism = _maxParallelism,
                CancellationToken = cts.Token
            }, async (chunk, ct) =>
            {
                await _semaphoreSlim.WaitAsync();
                await DownloadChunkAsync(downloadId, fileUrl, tempPath, chunk.Start, chunk.End, fileSize, ct);
                _semaphoreSlim.Release();
            }), cts.Token);

            // 下载完成后重命名临时文件
            File.Move(tempPath, destinationPath, true);
            DownloadCompleted?.Invoke(downloadId);
            return downloadId;
        }
        catch (OperationCanceledException)
        {
            // 正常取消，不视为错误
            return downloadId;
        }
        catch (Exception ex)
        {
            DownloadFailed?.Invoke(downloadId, ex);
            throw;
        }
        finally
        {
            _activeDownloads.TryRemove(downloadId, out _);
        }
    }

    public void PauseDownload(int downloadId)
    {
        if (_activeDownloads.TryGetValue(downloadId, out var cts))
        {
            cts.Cancel();
        }
    }

    private async Task DownloadChunkAsync(int downloadId, string fileUrl, string destinationPath, long start, long end, long fileSize, CancellationToken cancellationToken)
    {
        try
        {
            // 使用 Range 头请求从断点处继续下载
            using var request = new HttpRequestMessage(HttpMethod.Get, fileUrl);
            request.Headers.Range = new RangeHeaderValue(start, end);

            using var response = await _httpClient.SendAsync(request, HttpCompletionOption.ResponseHeadersRead, cancellationToken);

            response.EnsureSuccessStatusCode();

            using var contentStream = await response.Content.ReadAsStreamAsync();
            using var fileStream = new FileStream(destinationPath, FileMode.Open, FileAccess.Write);

            fileStream.Seek(start, SeekOrigin.Begin);

            // 使用固定大小缓冲区，避免内存问题
            var buffer = new byte[BufferSize];
            int bytesRead;
            long totalRead = 0;
            while ((bytesRead = await contentStream.ReadAsync(buffer, 0, buffer.Length, cancellationToken)) > 0)
            {
                await fileStream.WriteAsync(buffer, 0, bytesRead, cancellationToken);
                totalRead += bytesRead;
                ProgressChanged?.Invoke(start + totalRead, fileSize);
            }
        }
        catch (OperationCanceledException)
        {
            // 正常取消，不视为错误
        }
        catch (Exception ex)
        {
            throw new Exception($"分片下载失败({start}-{end}): {ex.Message}", ex);
        }
    }

    private static IEnumerable<(long Start, long End)> CalculateChunks(long fileSize, int threadCount)
    {
        var chunkSize = Math.Max(ChunkSize, fileSize / threadCount);
        for (long i = 0; i < fileSize; i += chunkSize + 1)
        {
            var end = Math.Min(i + chunkSize, fileSize - 1);
            yield return (i, end);
        }
    }


    private async Task<long> GetFileSizeAsync(string fileUrl)
    {
        using var request = new HttpRequestMessage(HttpMethod.Head, fileUrl);
        using var response = await _httpClient.SendAsync(request);

        response.EnsureSuccessStatusCode();
        return response.Content.Headers.ContentLength ??
                throw new Exception("无法获取文件大小");
    }
}

主窗体MainForm中的代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
public partial class MainForm : Form
{
    private readonly string _serviceUri;
    private readonly ParallelDownloadService _downloader;
    private int _currentDownloadId;

    public MainForm()
    {
        InitializeComponent();

        _serviceUri = "http://localhost:5001";
        _downloader = new ParallelDownloadService();

        // 绑定事件
        _downloader.ProgressChanged += OnDownloadProgress;
        _downloader.DownloadCompleted += OnDownloadComplete;
        _downloader.DownloadFailed += OnDownloadFailed;

        // 按钮置灰
        btnPause.Enabled = false;
        btnResume.Enabled = false;
    }

    private void btnStart_Click(object sender, EventArgs e)
    {
        if (string.IsNullOrEmpty(textBox.Text) || !Directory.Exists(textBox.Text))
        {
            MessageBox.Show("请选择有效目录！");
            return;
        }

        btnStart.Enabled = false;
        btnPause.Enabled = true;
        progressBar.Value = 0;
        lblStatus.Text = "下载中...";

        string fileUrl = $"{_serviceUri}/uploads/completed/test.mp4";
        string destDir = textBox.Text;

        // 开始下载
        _ = Task.Run(async () =>
        {
                _currentDownloadId = await _downloader.StartParallelDownloadAsync(fileUrl, destDir);
        });
    }

    private void btnPause_Click(object sender, EventArgs e)
    {
        _downloader.PauseDownload(_currentDownloadId);
        btnPause.Enabled = false;
        btnResume.Enabled = true;
        lblStatus.Text = "已暂停";
    }

    private void btnResume_Click(object sender, EventArgs e)
    {
        // 重新开始下载
        btnStart_Click(sender, e);
        btnResume.Enabled = false;
    }

    private void btnBrowse_Click(object sender, EventArgs e)
    {
        using var folderBrowserDialog = new FolderBrowserDialog();
        // 设置对话框标题
        folderBrowserDialog.Description = "请选择保存文件的目录";
        // 设置初始目录（可选）
        folderBrowserDialog.SelectedPath = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments);

        // 显示对话框
        if (folderBrowserDialog.ShowDialog() == DialogResult.OK)
        {
            // 获取用户选择的目录路径
            textBox.Text = folderBrowserDialog.SelectedPath;
        }
    }
    private void OnDownloadProgress(long bytes, long fileSize)
    {
        this.Invoke(() =>
        {
            progressBar.Maximum = (int)(fileSize / 1024);
            progressBar.Value = (int)(bytes / 1024);
            lblProgress.Text = $"{bytes / 1024 / 1024}MB / {fileSize / 1024 / 1024}MB";
        });
    }

    private void OnDownloadComplete(int downloadId)
    {
        this.Invoke(() =>
        {
            lblStatus.Text = "下载完成";
            ResetUI();
        });
    }

    private void OnDownloadFailed(int downloadId, Exception ex)
    {
        this.Invoke(() =>
        {
            MessageBox.Show($"下载失败: {ex.Message}");
            lblStatus.Text = "下载失败";
            ResetUI();
        });
    }

    private void ResetUI()
    {
        btnStart.Enabled = true;
        btnPause.Enabled = false;
        btnResume.Enabled = false;
    }
}

下载重试

与上传类似，断点续传下载也可以添加重试机制。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
public class ParallelDownloadService
{
    ...
    private readonly int _maxRetryCount;
    ...

    public ParallelDownloadService(..., int maxRetryCount = 10)
    {
        ...
        _maxRetryCount = maxRetryCount;
    }

    public async Task<int> StartParallelDownloadAsync(string fileUrl, string destDir)
    {
        var downloadId = fileUrl.GetHashCode();
        var cts = new CancellationTokenSource();
        _activeDownloads.TryAdd(downloadId, cts);

        try
        {
            // 获取文件总大小
            var fileSize = await GetFileSizeAsync(fileUrl);

            // 创建目标文件
            var destFile = fileUrl.Split("/").Last();
            var destinationPath = $"{destDir}\\{destFile}";
            var tempDir = $"{destDir}\\temp";
            var tempPath = $"{tempDir}\\{Path.GetFileNameWithoutExtension(destFile)}.tmp";
            if (!Directory.Exists(destDir)) Directory.CreateDirectory(destDir);
            if (!Directory.Exists(tempDir)) Directory.CreateDirectory(tempDir);
            using (var fs = new FileStream(tempPath, FileMode.Create, FileAccess.Write))
            {
                fs.SetLength(fileSize);
            }

            // 计算分片
            var chunks = CalculateChunks(fileSize, _maxParallelism);

            // 并行下载
            var retryCount = 0;
            var completed = false;
            while (!completed && retryCount < _maxRetryCount)
            {
                try
                {
                    await Task.Run(() => Parallel.ForEachAsync(chunks, new ParallelOptions
                    {
                        MaxDegreeOfParallelism = _maxParallelism,
                        CancellationToken = cts.Token
                    }, async (chunk, ct) =>
                    {
                        await _semaphoreSlim.WaitAsync();
                        await DownloadChunkAsync(downloadId, fileUrl, tempPath, chunk.Start, chunk.End, fileSize, ct);
                        _semaphoreSlim.Release();
                    }), cts.Token);

                    completed = true;
                }
                catch
                {
                    retryCount++;
                    if (retryCount >= _maxRetryCount) throw;
                    await Task.Delay(100 * retryCount); // 指数退避
                }
            }
            // 下载完成后重命名临时文件
            File.Move(tempPath, destinationPath, true);
            DownloadCompleted?.Invoke(downloadId);
            return downloadId;
        }
        catch (OperationCanceledException)
        {
            // 正常取消，不视为错误
            return downloadId;
        }
        catch (Exception ex)
        {
            DownloadFailed?.Invoke(downloadId, ex);
            throw;
        }
        finally
        {
            _activeDownloads.TryRemove(downloadId, out _);
        }
    }

    ...
}

限速下载

断点续传下载同样可以添加下载速度限制功能。下面创建一个SpeedLimitResumableDownloadService服务类，在并行下载基础上，添加限速下载功能。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
public class SpeedLimitResumableDownloadService
{
    private readonly HttpClient _httpClient;
    private readonly ConcurrentDictionary<int, CancellationTokenSource> _activeDownloads;
    private const int BufferSize = 8192; // 缓冲区 8KB
    private const int ChunkSize = 1024 * 1024; // 1MB 每块
    private readonly int _maxParallelism;
    private readonly int _maxRetryCount;
    private int _maxSpeedKBps; // 0表示不限速
    private Stopwatch _stopWatch;
    private readonly SemaphoreSlim _semaphoreSlim = new SemaphoreSlim(1, 1);  // 使用SemaphoreSlim实现异步锁，初始化时设置最大并发数为 1

    // 进度和状态事件
    public event Action<long, long> ProgressChanged; // 当前下载量, 总大小
    public event Action<int> DownloadCompleted;     // 下载ID
    public event Action<int, Exception> DownloadFailed; // 下载ID, 异常
    public event Action<double> SpeedChanged;      // 下载速度(KB/s)

    public SpeedLimitResumableDownloadService(int maxParallelism = 4, int maxRetryCount = 10, int maxSpeedKBps = 0)
    {
        _httpClient = new HttpClient();
        _stopWatch = new Stopwatch();
        _httpClient.Timeout = Timeout.InfiniteTimeSpan;
        _activeDownloads = new ConcurrentDictionary<int, CancellationTokenSource>();
        _maxParallelism = maxParallelism;
        _maxRetryCount = maxRetryCount;
        _maxSpeedKBps = maxSpeedKBps;
    }

    public async Task<int> StartParallelDownloadAsync(string fileUrl, string destDir)
    {
        var downloadId = fileUrl.GetHashCode();
        var cts = new CancellationTokenSource();
        _activeDownloads.TryAdd(downloadId, cts);
        try
        {
            // 获取文件总大小
            var fileSize = await GetFileSizeAsync(fileUrl);

            // 创建目标文件
            var destFile = fileUrl.Split("/").Last();
            var destinationPath = $"{destDir}\\{destFile}";
            var tempDir = $"{destDir}\\temp";
            var tempPath = $"{tempDir}\\{Path.GetFileNameWithoutExtension(destFile)}.tmp";
            if (!Directory.Exists(destDir)) Directory.CreateDirectory(destDir);
            if (!Directory.Exists(tempDir)) Directory.CreateDirectory(tempDir);
            using (var fs = new FileStream(tempPath, FileMode.Create, FileAccess.Write))
            {
                fs.SetLength(fileSize);
            }

            // 计算分片
            var chunks = CalculateChunks(fileSize, _maxParallelism);

            // 并行下载
            var retryCount = 0;
            var completed = false;
            while (!completed && retryCount < _maxRetryCount)
            {
                try
                {
                    await Task.Run(() => Parallel.ForEachAsync(chunks, new ParallelOptions
                    {
                        MaxDegreeOfParallelism = _maxParallelism,
                        CancellationToken = cts.Token
                    }, async (chunk, ct) =>
                    {
                        await _semaphoreSlim.WaitAsync();
                        await DownloadChunkAsync(downloadId, fileUrl, tempPath, chunk.Start, chunk.End, fileSize, ct);
                        _semaphoreSlim.Release();
                    }), cts.Token);

                    completed = true;
                }
                catch
                {
                    retryCount++;
                    if (retryCount >= _maxRetryCount) throw;
                    await Task.Delay(100 * retryCount); // 指数退避
                }
            }
            // 下载完成后重命名临时文件
            File.Move(tempPath, destinationPath, true);
            DownloadCompleted?.Invoke(downloadId);
            return downloadId;
        }
        catch (OperationCanceledException)
        {
            // 正常取消，不视为错误
            return downloadId;
        }
        catch (Exception ex)
        {
            DownloadFailed?.Invoke(downloadId, ex);
            throw;
        }
        finally
        {
            _activeDownloads.TryRemove(downloadId, out _);
        }
    }

    public void PauseDownload(int downloadId)
    {
        if (_activeDownloads.TryGetValue(downloadId, out var cts))
        {
            cts.Cancel();
        }
    }

    private async Task DownloadChunkAsync(int downloadId, string fileUrl, string destinationPath, long start, long end, long fileSize, CancellationToken cancellationToken)
    {
        try
        {
            // 使用 Range 头请求从断点处继续下载
            using var request = new HttpRequestMessage(HttpMethod.Get, fileUrl);
            request.Headers.Range = new RangeHeaderValue(start, end);

            using var response = await _httpClient.SendAsync(request, HttpCompletionOption.ResponseHeadersRead, cancellationToken);

            response.EnsureSuccessStatusCode();

            using var contentStream = await response.Content.ReadAsStreamAsync();
            using var fileStream = new FileStream(destinationPath, FileMode.Open, FileAccess.Write);

            fileStream.Seek(start, SeekOrigin.Begin);

            // 使用固定大小缓冲区，避免内存问题
            var buffer = new byte[BufferSize];
            int bytesRead;
            long totalRead = 0;
            while ((bytesRead = await ReadWithSpeedLimit(contentStream, buffer, cancellationToken)) > 0)
            {
                await fileStream.WriteAsync(buffer, 0, bytesRead, cancellationToken);
                // 更新下载进度
                totalRead += bytesRead;
                ProgressChanged?.Invoke(start + totalRead, fileSize);
                // 更新下载速度
                var speed = bytesRead / 1024.0 / _stopWatch.Elapsed.TotalSeconds;
                SpeedChanged?.Invoke(speed);
            }
        }
        catch (OperationCanceledException)
        {
            // 正常取消，不视为错误
        }
        catch (Exception ex)
        {
            throw new Exception($"分片下载失败({start}-{end}): {ex.Message}", ex);
        }
        finally
        {
            _stopWatch.Stop();
        }
    }

    private async Task<int> ReadWithSpeedLimit(Stream stream, byte[] buffer, CancellationToken cancellationToken)
    {
        _stopWatch.Restart();
        var bytesRead = 0;
        if (_maxSpeedKBps <= 0)
        {
            // 不限速
            bytesRead = await stream.ReadAsync(buffer, 0, buffer.Length, cancellationToken);
            return bytesRead;
        }

        // 计算本次读取的最大字节数
        var maxBytes = (int)(_maxSpeedKBps * 1024 * 0.1); // 每100ms的限额
        var readSize = Math.Min(buffer.Length, maxBytes);

        bytesRead = await stream.ReadAsync(buffer, 0, readSize, cancellationToken);

        // 速度控制
        if (bytesRead > 0 && _maxSpeedKBps > 0)
        {
            var expectedTime = (bytesRead / 1024.0) / _maxSpeedKBps * 1000; // 毫秒
            var actualTime = _stopWatch.ElapsedMilliseconds;
            var delayTime = (int)(expectedTime - actualTime);

            if (delayTime > 0)
            {
                await Task.Delay(delayTime, cancellationToken);
            }
        }

        return bytesRead;
    }

    private static IEnumerable<(long Start, long End)> CalculateChunks(long fileSize, int threadCount)
    {
        // 同并行下载
    }


    private async Task<long> GetFileSizeAsync(string fileUrl)
    {
        // 同并行下载
    }
}

主窗体MainForm中的部分代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
public partial class MainForm : Form
{
    private readonly string _serviceUri;
    private readonly SpeedLimitResumableDownloadService _downloader;
    private int _currentDownloadId;

    public MainForm()
    {
        InitializeComponent();

        _serviceUri = "http://localhost:5001";
        _downloader = new SpeedLimitResumableDownloadService();

        // 绑定事件
        _downloader.ProgressChanged += OnDownloadProgress;
        _downloader.DownloadCompleted += OnDownloadComplete;
        _downloader.DownloadFailed += OnDownloadFailed;
        _downloader.SpeedChanged += OnSpeedChanged;

        // 按钮置灰
        btnPause.Enabled = false;
        btnResume.Enabled = false;
    }

    private void OnSpeedChanged(double speedKBps)
    {
        this.Invoke((Delegate)(() =>
        {
            lblSpeed.Text = $"{speedKBps / 1024:0.00} MB/s";
        }));
    }

    ...
}

最终实现的效果如下：

参考文档

  1. 前言
  2. 断点续传上传
    1. 分片上传
      1. 服务端实现
      2. 客户端实现
    2. 断点续传
      1. 服务端实现
      2. 客户端实现
    3. 上传进度反馈与上传取消
      1. 服务端实现
      2. 客户端实现
    4. 并行上传
      1. 服务端实现
      2. 客户端实现
    5. 动态调整分片大小
      1. 服务端实现
      2. 客户端实现
    6. 完整性校验
      1. 分片完整校验
      2. 文件完整性校验
    7. 重传尝试
    8. 分片定时清理
  3. 断点续传下载
    1. 下载进度反馈与下载取消
      1. 服务端实现
      2. 客户端实现
    2. 并行下载与暂停恢复
      1. 客户端实现
    3. 下载重试
    4. 限速下载
  4. 参考文档
© 2019 - 2025    Jocoboy
Powered by Hexo & Theme Keep
This site is deployed on
  1. 前言
  2. 断点续传上传
    1. 分片上传
      1. 服务端实现
      2. 客户端实现
    2. 断点续传
      1. 服务端实现
      2. 客户端实现
    3. 上传进度反馈与上传取消
      1. 服务端实现
      2. 客户端实现
    4. 并行上传
      1. 服务端实现
      2. 客户端实现
    5. 动态调整分片大小
      1. 服务端实现
      2. 客户端实现
    6. 完整性校验
      1. 分片完整校验
      2. 文件完整性校验
    7. 重传尝试
    8. 分片定时清理
  3. 断点续传下载
    1. 下载进度反馈与下载取消
      1. 服务端实现
      2. 客户端实现
    2. 并行下载与暂停恢复
      1. 客户端实现
    3. 下载重试
    4. 限速下载
  4. 参考文档
